1. Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 536 views

Challenge: Build a Color-Coded Log Viewer for Euphoria (Inspired by chat.exw)

Hi all,

I am issuing a small but meaningful challenge to the Euphoria/Phix community: Build a color-coded log viewer using IUP, inspired by Pete Lomax's chat.exw.

This is not just a toy idea. It is a genuinely useful debugging tool that could make Euphoria development smoother and more modern.

Specs

• The viewer receives log entries over TCP/IP.
• It displays messages in a scrollable panel or list area.
• Each message affects the background color of all subsequent output, based on log level:

  ERROR:   -> light pink background
  WARNING: -> yellow background
  INFO:    -> green background
  DEBUG:   -> white background
  VERBOSE: -> white background

Messages must start with the log level prefix (such as ERROR:). The background color remains in effect until a new prefix is seen.

• The viewer does not edit log entries. It simply displays them in real-time (or in buffered batches if preferred).

My Role (xecronix / Ronald)

I will modify the following `logger.e` module to optionally write to a TCP/IP socket instead of a log file. This will allow the viewer to receive logs live, without requiring file polling or tailing.

Here is the original version of the logger:

-- logger.e
-- File: lib/utils/logger.e

include ../shared/constants.e
include builtins/timedate.e

global enum SILENT, ERR, INFO, DEBUG, TRACE, VERBOSE

integer log_level = VERBOSE
sequence log_file = "bzscript.log"
integer log_handle = -1

global procedure init_logger()
    if not file_exists(log_file) then
        log_handle = open(log_file, "w")
    else
        log_handle = open(log_file, "a")
    end if
    if log_handle = -1 then
        puts(1, "[logger] Failed to open log file.\n")
        abort(1)
    end if
end procedure

global procedure close_logger()
    if log_handle != -1 then
        close(log_handle)
        log_handle = -1
    end if
end procedure

procedure log_line(sequence level, sequence msg)
    sequence td = format_timedate(date(), "YYYY-MM-DD HH:mm:ss")
    printf(log_handle, "[%s] [%s] %s\n", {td, level, msg})
end procedure

procedure log_info(sequence msg)
    log_line("info", msg)
end procedure

procedure log_debug(sequence msg)
    log_line("debug", msg)
end procedure

procedure log_trace(sequence msg)
    log_line("trace", msg)
end procedure

procedure log_error(sequence msg)
    log_line("error", msg)
end procedure

procedure log_verbose(sequence msg)
    log_line("verbose", msg)
end procedure

global procedure logger(integer level, sequence msg)
    if log_handle = -1 then
        init_logger()
    end if
    if level <= log_level then
        if level = SILENT then
            -- do nothing
        elsif level = ERR then
            log_error(msg)
        elsif level = INFO then
            log_info(msg)
        elsif level = DEBUG then
            log_debug(msg)
        elsif level = TRACE then
            log_trace(msg)
        elsif level = VERBOSE then
            log_verbose(msg)
        else
            log_error("**INVALID LOGGER TYPE**")
            log_error(msg)
        end if
    end if
end procedure

Why This Matters

• Euphoria has always been about simplicity and power. A simple real-time log viewer supports both goals.
• If no one takes this on, I will write it in FreePascal, create a dll/so, and wrap it for Euphoria.
• But I would rather see someone here step up and keep this kind of tooling native to the language.

Imagine a custom view of complex data while stepping thru code in the trace program/debugger.
Imagine a custom view of test results simply by logging.

Who's in?

Ronald Weidner

3. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 531 views

I'll test that and let you know. But, that would be surprising to me. I can imagine cpp name mangling might be an issue? Maybe? Possibly OOP in general could be an issue? I wrote a tutorial on this a few years ago. I'll reuse that but write the dll in FreePascal to see what happens.

-- demo\theGUI\gList.exw
include theGUI.e

sequence data = {"one",{{"too",TG_RED,TG_ITALIC}},"three"}
integer maxlen = largest(apply(data,length),return_index:=true)

function get_data(integer idx)
    if idx=0 then return length(data) end if
    if idx=-1 then return maxlen end if
    return data[idx]
end function

gdx list = gList(get_data,`FONT="Consolas, 12"`),
     dlg = gDialog(list,"gList",`SIZE=240x80`)
gSetAttribute(list,"BGCLR",TG_LIGHT_PARCHMENT)
gShow(dlg)
gMainLoop()

5. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by Icy_Viking 3 weeks ago
• 516 views

I think the CPP name mangling would be an issue, I assume it would also be an issue with other programming languages. I guess it might be possible with work-arounds or renaming/rewording the function names mangling due to OOP.

7. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 507 views

I tested this with a trivial example:

Pascal Code:

library hello_export;

uses
  Classes, SysUtils;

{$H+}

function say_hello(): PChar;
begin
  Result := 'Hello from FreePascal DLL!';
end;

exports
  say_hello;

begin
end.


And the Euphoria that runs it:

include std/dll.e
include std/machine.e
include std/pretty.e
include std/filesys.e

sequence dll_name = "hello_export.dll"
printf(1, "loading dll: %s\n", {dll_name})
atom lib = open_dll(dll_name)
atom hello = define_c_func(lib, "say_hello", {}, C_POINTER)
atom ptr = c_func(hello, {})
sequence msg = peek_string(ptr)
printf(1, "Returned from DLL: %s\n", {msg})

My only proof it works:

Owner@DESKTOP-VHI2MMV MINGW64 /c/dev/fpc_units/simple_dll
$ eui hello_eu.ex
loading dll: hello_export.dll
Returned from DLL: Hello from FreePascal DLL!

9. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by euphoric (admin) 3 weeks ago
• 480 views

Or MQTT.

library hello_export;

uses
  Classes, SysUtils;

{$H+}

function say_hello(): PChar;
begin
  Result := 'Hello from FreePascal DLL!';
end;

exports
  say_hello;

begin
end.


include std/dll.e
include std/machine.e
include std/pretty.e
include std/filesys.e

sequence dll_name = "hello_export.dll"
printf(1, "loading dll: %s\n", {dll_name})
atom lib = open_dll(dll_name)
atom hello = define_c_func(lib, "say_hello", {}, C_POINTER)
atom ptr = c_func(hello, {})
sequence msg = peek_string(ptr)
printf(1, "Returned from DLL: %s\n", {msg})

Owner@DESKTOP-VHI2MMV MINGW64 /c/dev/fpc_units/simple_dll
$ eui hello_eu.ex
loading dll: hello_export.dll
Returned from DLL: Hello from FreePascal DLL!

11. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 470 views

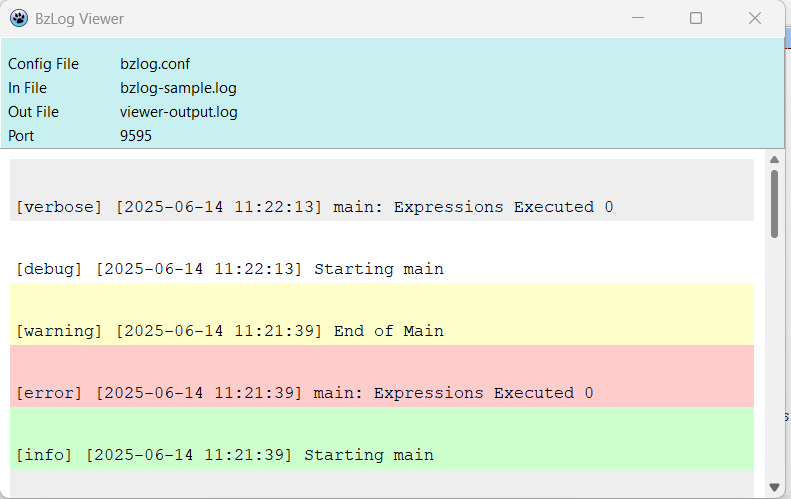

Here is a mockup of what I had in mind. It's kind of a semi-functional mock-up. It does parse a log file, mark it up a little to html, and display it. Can it be done in Euphoria or Phix instead of FreePascal? Probably. I'm moving on to the actual logger now. Essentially, I'm going to rewrite the one I did in Euphoria/Phix and make it a dll. Then wrap the dll in Euphoria. Hopefully, the logger (not the viewer) will be done today or tomorrow. We'll see.

include std/filesys.e
include std/io.e
include std/search.e

sequence cmd = command_line()
if length(cmd) < 3 then
  puts(STDERR, "Syntax: html_log file\n")
  abort(1)
end if
sequence log_file = cmd[3]

integer f_out = open(filebase(log_file) & ".html", "w")
puts(f_out, "<!DOCTYPE html>\n<html>\n<title>HTML Log</title>\n" &
  "<meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">\n" &
  "<link rel=\"stylesheet\" href=\"https://www.w3schools.com/w3css/5/w3.css\">\n<body>"
)
sequence lines = read_lines(log_file)
if begins({#EF,#BB,#BF}, lines[1]) then  -- UTF-8 BOM
  lines[1] = remove(lines[1], 1, 3)
end if
for i = 1 to length( lines ) label "main" do
  if length(lines[i]) = 0 then continue end if
  if begins("[verbose]", lines[i]) then
    puts(f_out, "<div class=\"w3-container w3-light-grey\">\n")
    puts(f_out, lines[i] & "\n")
    puts(f_out, "</div>\n")
  elsif begins("[debug]", lines[i]) then
    puts(f_out, "<div class=\"w3-container w3-white\">\n")
    puts(f_out, lines[i] & "\n")
    puts(f_out, "</div>\n")
  elsif begins("[warning]", lines[i]) then
    puts(f_out, "<div class=\"w3-container w3-pale-yellow\">\n")
    puts(f_out, lines[i] & "\n")
    puts(f_out, "</div>\n")
  elsif begins("[error]", lines[i]) then
    puts(f_out, "<div class=\"w3-container w3-pale-red\">\n")
    puts(f_out, lines[i] & "\n")
    puts(f_out, "</div>\n")
  elsif begins("[info]", lines[i]) then
    puts(f_out, "<div class=\"w3-container w3-pale-green\">\n")
    puts(f_out, lines[i] & "\n")
    puts(f_out, "</div>\n")
  else
    puts(f_out, lines[i] & "\n")
  end if
end for
puts(f_out, "</body>\n</html>")
close(f_out)

13. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 444 views

I have completed the happy path for the logger. The Pascal code is shown below. If you're working on a live stream log viewer, the important bits to note about the logger are:

This is the message format. Msg can have newlines. So I made an <EOM> End Of Message delimiter. It's configurable. (see config file below)

FullMsg := '[' + LevelStr + '] [' + FormatTimestamp + '] ' + Msg;

This is how data moves across the wire. LineEnding is configured to be platform specific.

      Data := Payload + LineEnding + MessageTerminator + LineEnding;
      Sock.SendString(Data);

I tightened this up a little bit. There are more details, but this shows the log levels and their strings in the correct order.

  case ALevel of
    llSilent:      ; // no output
    llError:       LogLine('ERROR', Msg);
    llWarning:     LogLine('WARNING', Msg);
    llInfo:        LogLine('INFO', Msg);
    llDebug:       LogLine('DEBUG', Msg);
    llVerbose:     LogLine('VERBOSE', Msg);
  end;

This is an example config file.

[viewer]
in_log_file=bzlog-sample.log
port=9595
out_log_file=viewer-output.log
socket_timeout_ms=30000
message_terminator=MAGIC$sdfgsdfgsdfgEND_OF_MESSAGE

[client]
viewer_ip=127.0.0.1
viewer_port=9595
message_terminator=MAGIC$sdfgsdfgsdfgEND_OF_MESSAGE
fallback_log_file=bzlog-sample.log

Full Pascal source. This is subject to change, but it should be close enough for you if you're working on a live log viewer.

unit bzlogger;

{$mode objfpc}{$H+}

interface

uses
  Classes, SysUtils;

type
  TLogLevel = (llSilent, llError, llWarning, llInfo, llDebug, llVerbose);

procedure InitLogger(const AConfigFile: string = 'bzlog.conf');
procedure CloseLogger;
procedure Logger(ALevel: TLogLevel; const Msg: string);
procedure SetLogLevel(ALevel: TLogLevel);

const
  SILENT     = llSilent;
  ERROR      = llError;
  WARNING    = llWarning;
  INFO       = llInfo;
  DEBUG      = llDebug;
  VERBOSE    = llVerbose;

implementation

uses
  IniFiles, blcksock, synautil;

var
  LogFile: TextFile;
  LogFileOpen: Boolean = False;
  LogFileName: string = 'bzscript.log';
  CurrentLogLevel: TLogLevel = llVerbose;

  ViewerIP: string = '127.0.0.1';
  ViewerPort: Word = 9595;
  MessageTerminator: string = '<EOL>';
  FallbackLogFile: string = 'bzscript.log';
  ConfLoaded: Boolean = False;

procedure LoadConfig(const AConfigFile: string);
var
  Ini: TIniFile;
begin
  Ini := TIniFile.Create(AConfigFile);
  try
    ViewerIP         := Ini.ReadString('client', 'viewer_ip', '127.0.0.1');
    ViewerPort       := Ini.ReadInteger('client', 'viewer_port', 9595);
    MessageTerminator:= Ini.ReadString('client', 'message_terminator', '<EOM>');
    FallbackLogFile  := Ini.ReadString('client', 'fallback_log_file', 'bzscript.log');
  finally
    Ini.Free;
  end;
  ConfLoaded := True;
end;

procedure InitLogger(const AConfigFile: string);
begin
  LoadConfig(AConfigFile);
  LogFileName := FallbackLogFile;
  AssignFile(LogFile, LogFileName);
  if FileExists(LogFileName) then
    Append(LogFile)
  else
    Rewrite(LogFile);
  LogFileOpen := True;
end;

procedure CloseLogger;
begin
  if LogFileOpen then
  begin
    CloseFile(LogFile);
    LogFileOpen := False;
  end;
end;

procedure SetLogLevel(ALevel: TLogLevel);
begin
  CurrentLogLevel := ALevel;
end;

function FormatTimestamp: string;
begin
  Result := FormatDateTime('yyyy-mm-dd hh:nn:ss', Now);
end;

procedure WriteToFile(const LevelStr, Msg: string);
begin
  if not LogFileOpen then
    InitLogger('');

  WriteLn(LogFile, '[' + LevelStr + '] [' + FormatTimestamp + '] ' + Msg);
  Flush(LogFile);
end;

function SendLogOverTcp(const Payload: string): Boolean;
var
  Sock: TTCPBlockSocket;
  Data: string;
begin
  Result := False;
  Sock := TTCPBlockSocket.Create;
  try
    Sock.Connect(ViewerIP, IntToStr(ViewerPort));
    if Sock.LastError = 0 then
    begin
      Data := Payload + LineEnding + MessageTerminator + LineEnding;
      Sock.SendString(Data);
      if Sock.LastError = 0 then
        Result := True
      else
        WriteToFile('TCP_FAIL', 'Send error: ' + Sock.LastErrorDesc);
    end
    else
      WriteToFile('TCP_FAIL', 'Connect error: ' + Sock.LastErrorDesc);
  finally
    Sock.Free;
  end;
end;

procedure LogLine(const LevelStr, Msg: string);
var
  FullMsg: string;
begin
  FullMsg := '[' + LevelStr + '] [' + FormatTimestamp + '] ' + Msg;

  if not ConfLoaded then
    InitLogger('');

  if not SendLogOverTcp(FullMsg) then
    WriteToFile(LevelStr, Msg);
end;

procedure Logger(ALevel: TLogLevel; const Msg: string);
begin
  if ALevel > CurrentLogLevel then
    Exit;

  case ALevel of
    llSilent:      ; // no output
    llError:       LogLine('ERROR', Msg);
    llWarning:     LogLine('WARNING', Msg);
    llInfo:        LogLine('INFO', Msg);
    llDebug:       LogLine('DEBUG', Msg);
    llVerbose:     LogLine('VERBOSE', Msg);
  end;
end;

end.


My next steps.

1. try and find someone to do a code review.
2. write more tests. So far I have 3 passing tests. Probably a little weak to be honest.
3. export the code as a dll/so. At the moment it's just a lib. (called units in pascal)
4. make a Euphoria wrapper for the dll.
5. if Phix wraps up differently, make a wrapper for that too.
6. get this up on github.

15. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 434 views

well... as it turns out... there are differences between Euphoria and Phix that matter in this context. Phix can only open 32 bit dlls and Euphoria can only open 64 bit dlls. (on my machine) I'm not sure if ffi helps or not, but, I got some reading to do, it seems. Darn.

17. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 420 views

Awesome. Thank you for the offer. I'll put the code and docs on github tomorrow then ping this thread. I guess I'll put binaries there too.

19. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by xecronix 3 weeks ago
• 371 views

Mini Update

I went the UDP route. Logging is blazing fast now, and none of the weird timing issues I had before are showing up. I added a limit to the size of a single log message: 8 KB max. Anything longer gets truncated. In practice, most of my log messages are between 50 and 300 bytes, so 8 KB should be more than enough.

I also built a log viewer. It's threaded and very responsive. It's a standalone .exe, not a DLL. It can handle 1,000 log messages up to 8 KB each in near real-time. If messages come in faster than every 200 ms, the viewer buffers up to 1,000 of them and renders them in batches every 200 ms. I'm working on a static-view mode next, for reviewing log files longer than 1,000 entries.

format PE64 --GUI
include p.exw

21. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by euphoric (admin) 3 weeks ago
• 344 views

That sounds awesome! Well done!

23. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by Icy_Viking 2 weeks ago
• 300 views

Here is the Euphoria wrapper, based of the Pascal Win wrapper.

You can get the Euphoria FFI from here: [https://github.com/ghaberek/libffi-euphoria]

--Bzlogger Euphoria Wrapper
--Written by Andy P.
--Using FFI Euphoria wrapper
--Using Euphoria 4.1.0 Beta 2

--Note: FFI.e gives us C_STRING which wraps 'allocate_string' for us

--Euphoria Wrapper based off of xecronix's Pascal bzlogger_win_wrap.pas

--Note 2: DLL file must be in same folder/directory as bzlogger.e for it to load correctly

include std/ffi.e
include std/machine.e
include std/os.e

--Global vars
public atom bzlog

--Constants
public constant LOG_SILENT = 0,
			    LOG_ERROR = 1,
			    LOG_WARN = 2,
			    LOG_INFO = 3,
			    LOG_DEBUG = 4,
			    LOG_VERBOSE = 5

--Load DLL/Shared library for various OS's
ifdef WINDOWS then
	bzlog = open_dll("bzlogger_32.dll")
	elsifdef LINUX or FREEBSD then
	bzlog = open_dll("libbzlogger_32.so")
	elsifdef OSX then
	bzlog = open_dll("libbzlogger_32.dylib")
end ifdef

--If can't load DLL, display error
if bzlog = 0 then
	puts(1,"Failed to load bzlogger_32!\n")
	abort(0)
end if

--Wrap Functions

public constant xInitLogger = define_c_proc(bzlog,"+init_logger",{C_STRING}),
				xCloseLogger = define_c_proc(bzlog,"+close_logger",{}),
				xLogger = define_c_proc(bzlog,"+logger",{C_INT,C_STRING})

public procedure InitLogger(sequence configFile)
	c_proc(xInitLogger,{configFile})
end procedure

public procedure CloseLogger()
	c_proc(xCloseLogger,{})
end procedure

public procedure Logger(atom alevel,sequence msg)
	c_proc(xLogger,{alevel,msg})
end procedure

public constant xSetLogLevel = define_c_proc(bzlog,"+set_log_level",{C_INT}),
				xSetLogFileName = define_c_proc(bzlog,"+set_log_file_name",{C_STRING}),
				xSetViewerIP = define_c_proc(bzlog,"+set_viewer_ip",{C_STRING}),
				xSetViewerPort = define_c_proc(bzlog,"+set_viewer_port",{C_WORD})

public procedure SetLogLevel(atom alevel)
	c_proc(xSetLogLevel,{alevel})
end procedure

public procedure SetLogFileName(sequence aFileName)
	c_proc(xSetLogFileName,{aFileName})
end procedure

public procedure SetViewerIP(sequence AIP)
	c_proc(xSetViewerIP,{AIP})
end procedure

public procedure SetViewerPort(atom aPort)
	c_proc(xSetViewerPort,{aPort})
end procedure

public constant xGetLogFileName = define_c_func(bzlog,"+get_log_file_name",{},C_STRING),
				xGetLogLevel = define_c_func(bzlog,"+get_log_level",{},C_INT),
				xGetViewerIP = define_c_func(bzlog,"+get_viewer_ip",{},C_STRING),
				xGetViewerPort = define_c_func(bzlog,"+get_viewer_port",{},C_WORD),
				xIsConfigLoaded = define_c_func(bzlog,"+is_config_loaded",{},C_BOOL)

public function GetLogFileName()
	return c_func(xGetLogFileName,{})
end function

public function GetLogLevel()
	return c_func(xGetLogLevel,{})
end function

public function GetViewerIP()
	return c_func(xGetViewerIP,{})
end function

public function GetViewerPort()
	return c_func(xGetViewerPort,{})
end function

public function IsConfigLoaded()
	return c_func(xIsConfigLoaded,{})
end function

25. Re: Challenge: Build a Color-Coded Log Viewer for Phix/Euphoria (Inspired by chat.exw)

• Posted by Icy_Viking 2 weeks ago
• 267 views

Oh I was going off of the pascal wrapper file. Its an easy fix, I'll fix it real quick. Now they are in snake case. Euphoria reads the DLL function name how it is in the DLL. So if the function name is in snake case, you'll need the name inside the quotes "" to be in snake case. Anyways its been fixed.
